Electric warehouse rail transfer flat car
Basic Info
Model No.: RC
Product Description
Electric warehouse rail transfer flat car
Rail Flat Car Description
· Rail Flat Car gets power AC 380v through the device of cable reel.
· The crane motor is controlled by AC control system make the flat car to start, stop, go forward , backward , adjust the speed and so on.
· The Rail Flat Car adopt the magnetic coupling cable reel to make sure there is no force on the cable and the cable can be wound and released evenly.
· It is designed for transporting cargoes or equipment from one bay to another in factory, can running indoor or outdoor,on rail or cement floor.
· Suitable for short distance, high frequency, long time, uninterrupted working environment. it is also can equipped with crane Remote Control.
· price is low, the structure is simple easy to maintain, and the operation is simple. It is a star Rail Flat Car in material handing equipment.
To keep delivery more easier and safety, we can also provide lift platform like mobile lift platform

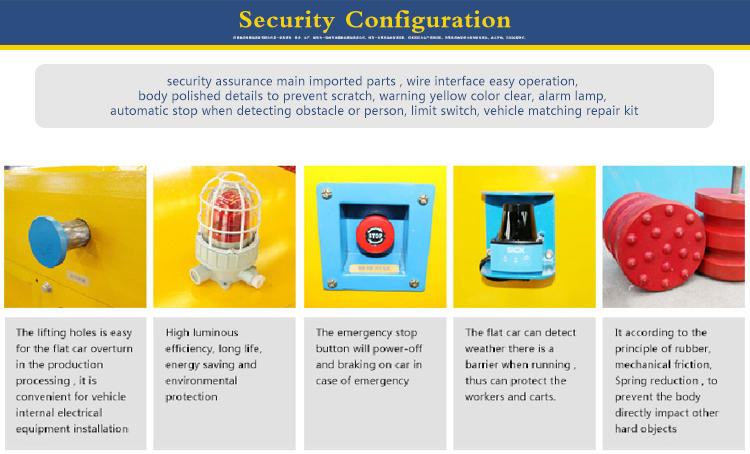

Part show & Detail Images
· Can running indoor or outdoor,on rail or cement floor;
· Suitable for short distance, high frequency, long time, uninterrupted working environment;
· Anti-explosion, anti-high temperature, apply to various occasions;
· No strict requirement for the construction of the railway;
· No limit of running hours safe and convenient operation;
· Price is low, the structure is simple easy to maintain;
· Long service life and excellent performance in workshops;
· Equipped with hydraulic lift system for more purpose;

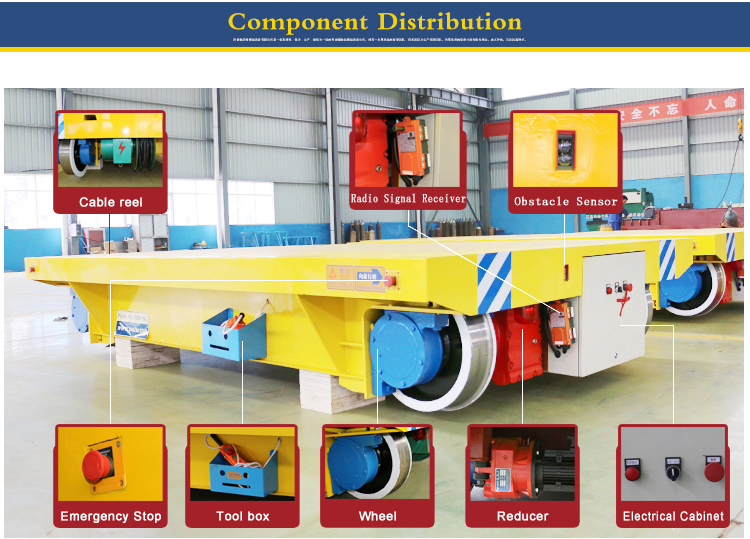

Parameter & Components
| Model | 2t | 5t | 10t | 16t | 20t | 25t | 30t | 40t | 50t | 63t | |
| Rated load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | |
| Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | |
| track Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
| Motor Power | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | |
| Transformer Power | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | |
| Transformer Quatity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | |
| Recommended track Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | |
Rail Flat Car Processing & Equipment
Packing & Delivery
· Our Rail Flat Car not only have sold across china, also exported to US, Germany, India, Thailand, Netherlands, South Africa, Syria, Turkey, Nepal etc all over the world.
· The cars body is packed with tarp, and the wheel and parts of the cart will be packed with wooden case;
· According transfer carts table size and quantity, cart will be transported to clients by FCL, LCL, Bulk Transportation, Open Top Container, Flat Rack Container and so on.
· The delivery time is around 10 days after clients pays the perpayment;
Our services
· Our commitment:
· The load bearing safety factor of the Rail Flat Car is no less than 120%;
· Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material;
· 16 hours engineering service and 24 hours internet service for our customers;
· During the warranty period, if our Rail Flat Car can't work normally, we can support you repair technology or replace relevant parts for you within 48 hours;
· Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company;
FAQ
- 1.Q: What term of payment do you accept?
- A: we accept 30% T/T as deposit, 70% T/T before delivery. we also accept L/C.
- 2.Q: What is you delivery time?
- A: We will delivery the Rail Flat Car according to you order in 10 days, after we accept the prepayment.
- 3.Q: How do transfer cart been shipped?
- A: We export the Rail Flat Car by sea or train with full container, LCL or in Bulk.
- 4.Q: Do you have quality assurance for Rail Flat Car?
- A: Yes, we have 1 year of assurance.
